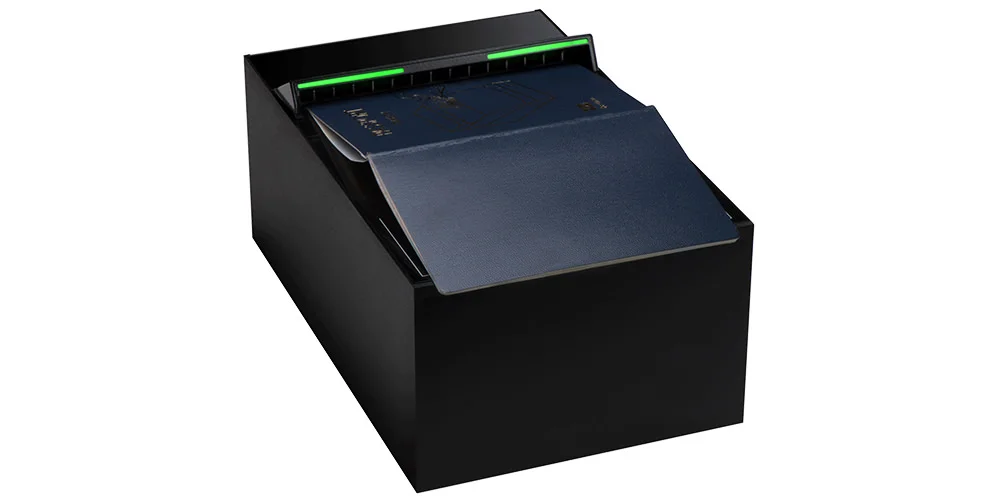

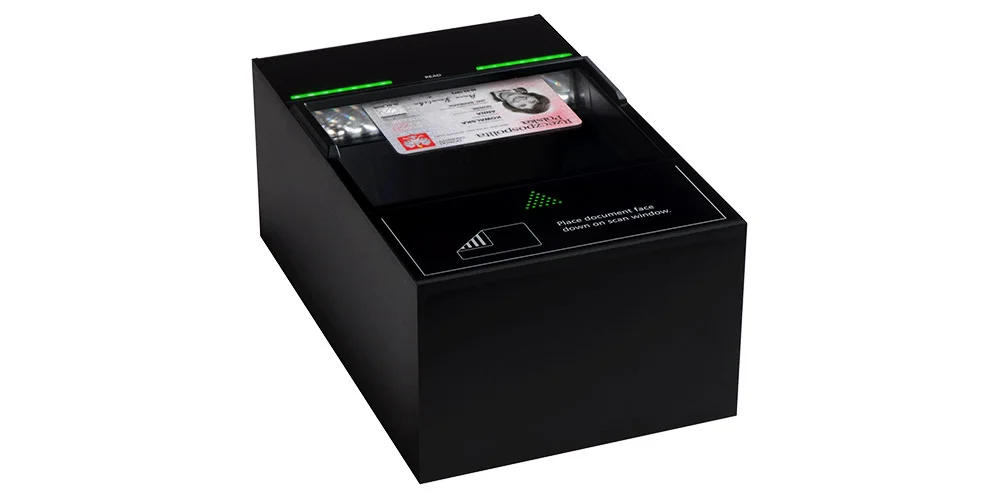

DESKO PENTA Scanner® Cube
Powerful full-page scanner for installation
Are you looking for a built-in device that offers all the advantages of DESKO PENTA technology yet boasts easy options for integration into self-service solutions? With the DESKO PENTA Scanner® Cube, we have developed an innovative OEM device for flexible installation in e-gates kiosks and counters. Equipped with the latest technology, the scanner achieves extremely rapid and reliable reading results for capturing passports, IDs, driver’s licenses and other identity documents. As a result, the PENTA Scanner Cube is ideal for visitor controls, airport or hotel check-in and border or access controls.
Sturdy scanner for integration in kiosks and counters

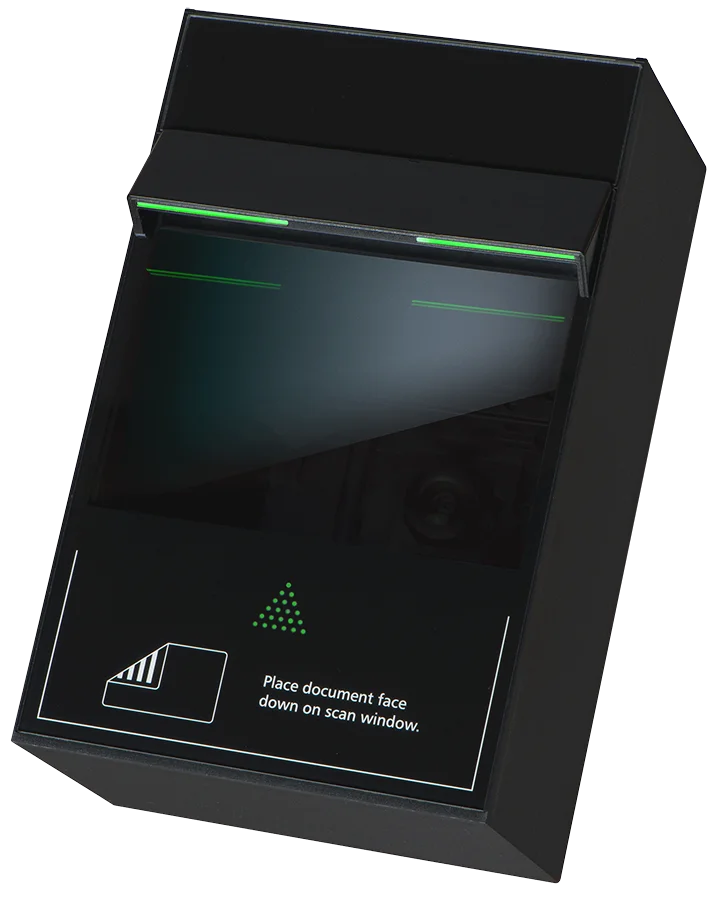

The PENTA Scanner Cube owes its name to its striking cubist design. Its compact construction allows for easy installation even in the smallest counters or self-service kiosks. The scanner is also extremely sturdy: The scan window is composed of scratch-proof safety glass and the entire device is protected against dust and water according to the IP54 certification standards. Thanks to its ease of use, evident from the large scan area and direct user feedback, this scanner is ideally suited for your self-service applications. The PENTA Scanner Cube features a buzzer for an acoustic signal as well as multicolor LEDs that provide easily visible feedback about reading results.
The latest technologies for optimal scanning results
The PENTA Scanner® Cube is the perfect OEM solution for obtaining secure and fast reading results. Equipped with proven OCR technology for optical character recognition, it captures the machine-readable zone (MRZ) of IDs, passports and other documents. Would you also like to read barcodes? An optional barcode module for reading barcodes on paper, smartphones and tables can supplement the equipped functions. Additional optional features like RFID and NFC modules for contactless recording of biometric passports as well as smartphones, tablets and chip cards with NFC make the scanner a future-proof application that ensures efficient data readout.
Video
The products in our PENTA Scanner family are highly flexible devices that can be configured entirely to suit your needs – the PENTA Scanner Cube is the perfect choice for integration into your kiosk. Discover all the available options for our tried-and-tested PENTA platform here.
Secure ID control with authentication
Would you like not only to scan documents but also to check their authenticity? Stay on the safe side, protect yourself against identity theft with our effective and affordable solutions! Combine the OEM device with DESKO software solutions for document verification or authentication software from other providers. When combined with the optional feature of UV light, this equipment allows you to reveal hidden security characteristics reliably and in a matter of seconds.
The advantages for you at a glance
- Flexible OEM product
- Easy integration into e-gates, kiosks, counters and other self-service solutions
- Automated detection of IDs, passports, digital vaccination certificates, driver’s licenses and other identity documents
- Extra-large scanning window for user-friendly operation
- High-resolution images of up to 500 dpi
- Visual and auditory user feedback through LEDs and buzzer
- Optional features like barcode reader, RFID and NFC module
- Protected against water and dust according to IP54 standards
- Scratch-proof safety glass
Equipment
-
Standard equipment
- OCR technology for reading out the machine-readable zone (MRZ) of identity documents, such as IDs, passports and driver’s licenses
- Light sources: Infrared (IR) and visible light (VIS)
- Safety glass on scan area
-
Optional equipment
- UV light for checking security features

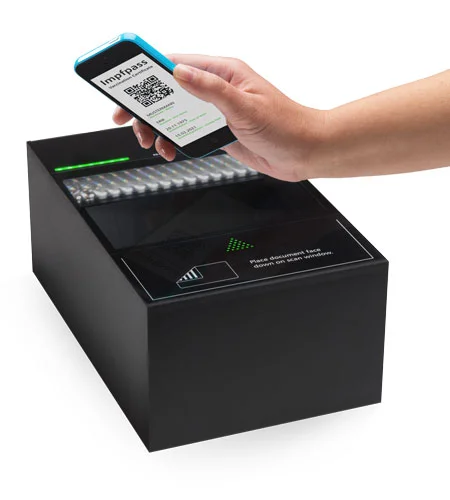

- Barcode scanner: For scanning 1D and 2D barcodes on paper and digital displays (smart watches, smartphones, tablets), e.g. boarding passes and tickets
- NFC module (Near Field Communication): Contactless scanning, for example employee cards
- China ID reading module: Integrated RFID module specifically for scanning Chinese IDs
- RFID module (Radio Frequency Identification): To read biometric passports
-
Software
Our PENTA Scanner Cube is a full-page scanner specially developed for installation. Thanks to image capture with visible, infrared and UV light, the PENTA Scanner Cube is ideally suited for checking the authenticity of identity documents in combination with authentication software.
-
Download
You can find more information in our data sheet. Download now!
DESKO PENTA Scanner® Cube (pdf, 338.4 kB)
